Components for primary circuit

B4

Components for primary circuit 1

Components for primary circuit 2

14D.2

Cable for UPM3 AUTO and Solar pump

Go to the product

B4

Components for primary circuit 3

Components for primary circuit 4

07S

Solar pump station, return+flow w/o copper pipe

Max working temperature: 110 °C
Safety relief valve setting: 6 bar
Connection centre distance: 125 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 5

Components for primary circuit 6

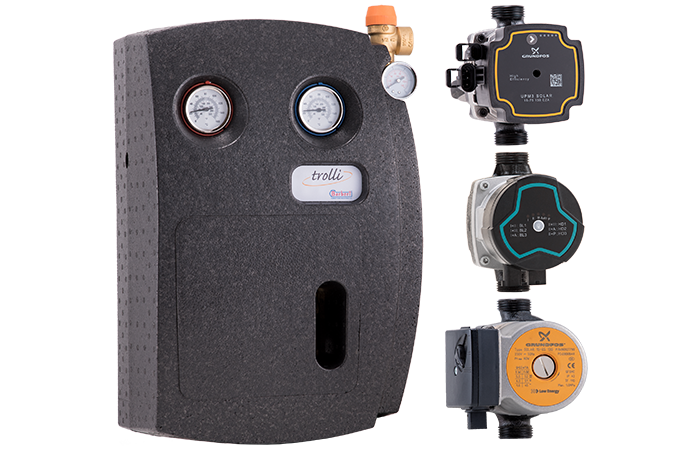

01S

Solar pump station, return+flow

Max working temperature: 110 °C
Safety relief valve setting: 6 bar
Connection centre distance: 125 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 7

Components for primary circuit 8

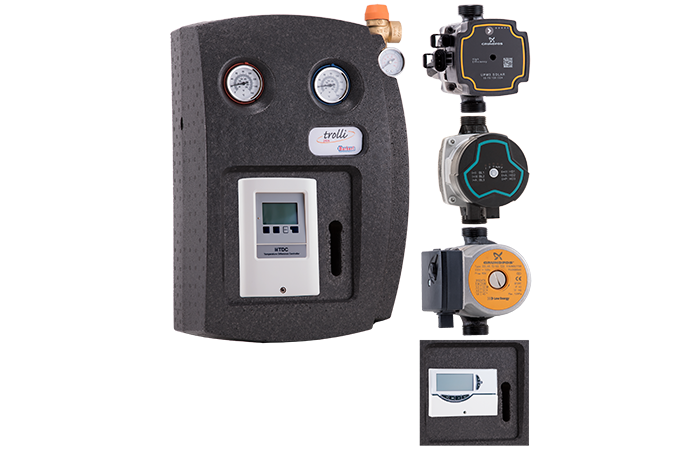

28S-27S

Solar pump station, controller, return+flow w/o copper pipe

Max working temperature: 110 °C
Safety relief valve setting: 6 bar
Connection centre distance: 125 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 9

Components for primary circuit 10

09S-12S

Solar pump station, controller, return+flow

Max working temperature: 110 °C
Safety relief valve setting: 6 bar
Connection centre distance: 125 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 11

Components for primary circuit 12

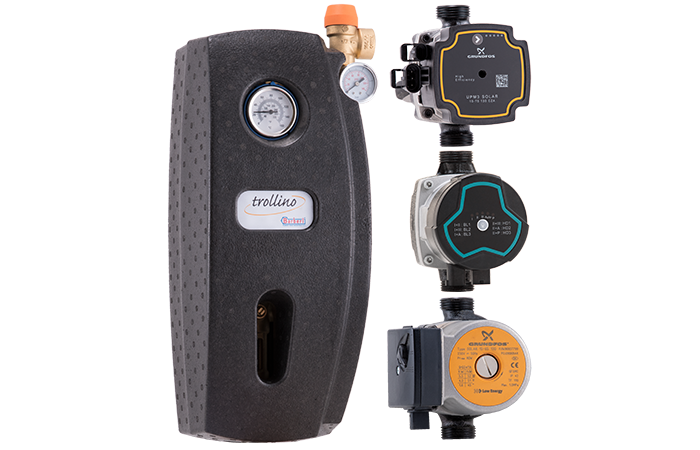

05S

Solar pump station, return only

Max working temperature: 110 °C
Safety relief valve setting: 6 bar
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 13

Components for primary circuit 14

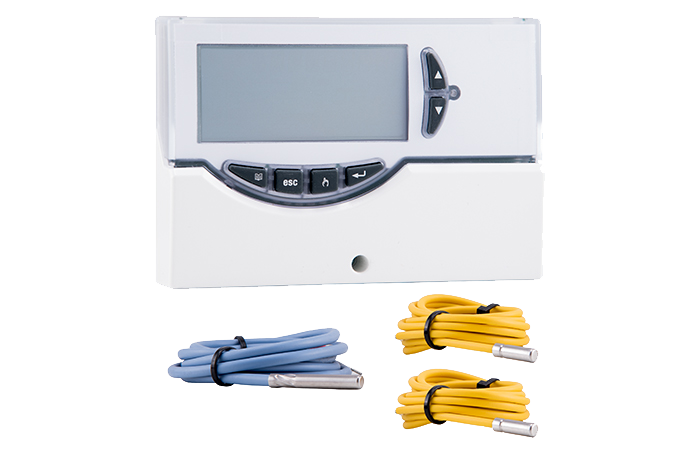

33D

Solar controller, 3 probes, PWM (TDST24M)

Supply: 230 V - 50 Hz
Protection class: IP 40
Supplied probes: 3 NTC 10K @ 25 °C ± 1%
Working temperature range of probes: -50–200 °C (blue), -50–110 °C (yellow)
Preset programs: 6

Go to the product

B4

Components for primary circuit 15

Components for primary circuit 16

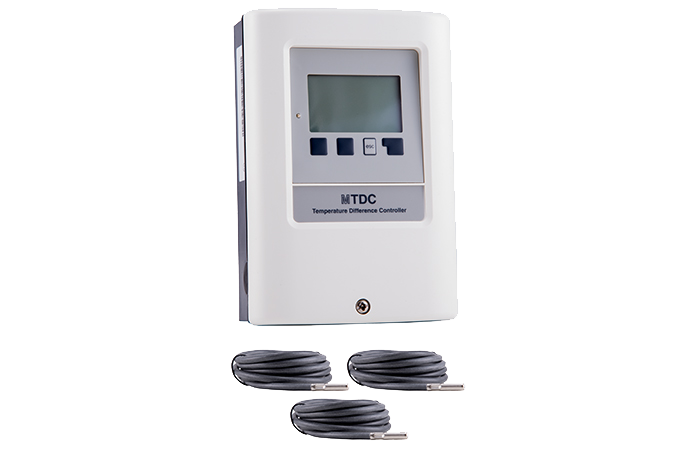

34D

Solar controller, 3 probes, PWM (MTDC)

Supply: 100–240 V - 50–60 Hz
Protection class: IP 40
Supplied probes: 3 Pt 1000
Working temperature range of probes: -40–300 °C
Optional probe: 1 Pt 1000
Preset programs: 27

Go to the product

B4

Components for primary circuit 17

Components for primary circuit 18

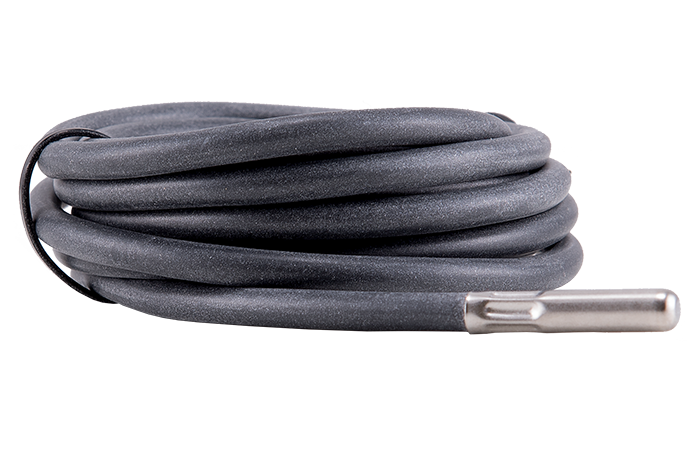

14D.4

Spare probe Pt 1000, max. 180 °C

Max working temperature: 180 °C (max. ohmic value in output)/220 °C (max fluid temperature)

Go to the product

B4

Components for primary circuit 19

Components for primary circuit 20

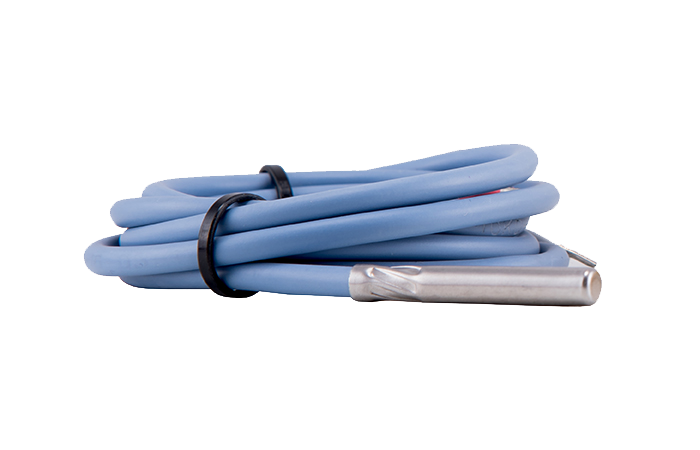

14D.6

Spare probe NTC -50–200 °C

Working temperature range of probes: -50–200 °C (blue)

Go to the product

B4

Components for primary circuit 21

Components for primary circuit 22

04D

Safety relief valve for primary solar circuit

Max working temperature: 160 °C
Suitable fluids: water, glycol solutions (max 50%)
Outflow coefficient: K=0,05
Opening overpressure: 10%
Reseating pressure: -20%
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 23

Components for primary circuit 24

03D

Max working temperature: 140 °C
Suitable fluids: water, glycol solutions (max 50%)
Outflow coefficient: K=0,05
Opening overpressure: 10%
Reseating pressure: -20%
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 25

Components for primary circuit 26

12D

Fitting G 3/4 M

Max working temperature: 140 °C
Max working pressure: 16 bar

Go to the product

B4

Components for primary circuit 27

Components for primary circuit 28

30D

Exp. vessel for primary and secondary solar systems

Max working temperature: 99 °C
Max working peak temperature: 130 °C (max 4 h/day)
Suitable fluids: water, glycol solutions (max 50%)

Go to the product

B4

Components for primary circuit 29

Components for primary circuit 30

18D

Expansion vessel installation kit, 500 mm

Max working temperature: 140 °C
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 31

Components for primary circuit 32

18D.1

Expansion vessel installation kit, 730 mm

Max working temperature: 140 °C
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 33

Components for primary circuit 34

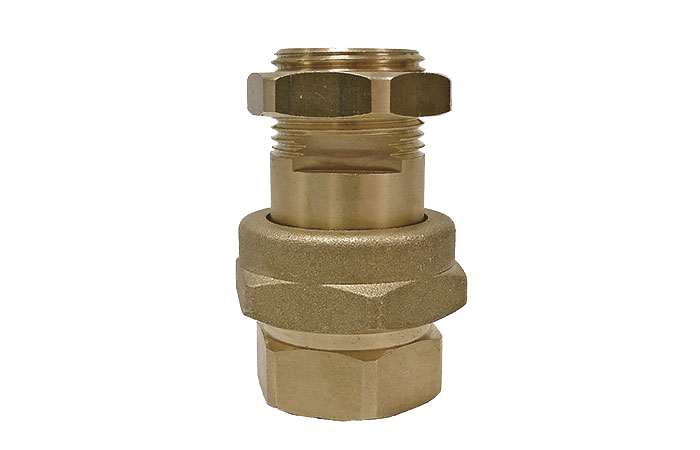

15D

Automatic shut-off valve for exp. vessel replacement

Max working temperature: 140 °C
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 35

Components for primary circuit 36

06D

Monobloc shut-off, temp. gauge, check valve, red

Max working temperature: 140 °C
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 37

Components for primary circuit 38

07D

Monobloc shut-off, temp. gauge, check valve, blue

Max working temperature: 140 °C
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 39

Components for primary circuit 40

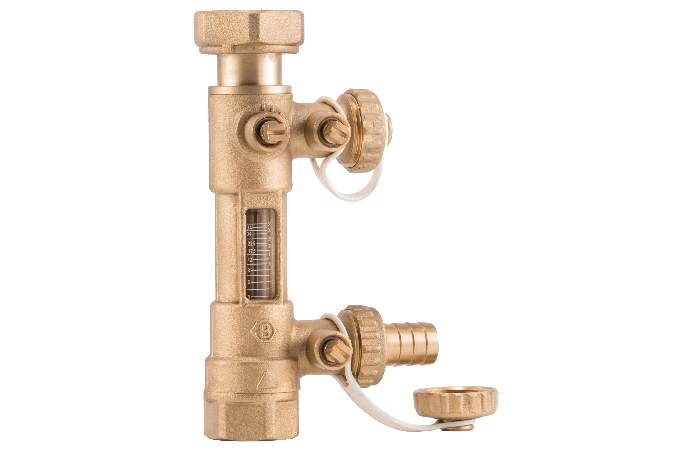

02D-31D

Solar flow meter DN 15

Max working temperature: 140 °C
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 41

Components for primary circuit 42

P32

Solar drain cock

Max working temperature: 150 °C
Max working pressure: 16 bar

Go to the product

B4

Components for primary circuit 43

Components for primary circuit 44

P71

Manual deaerator

Max working temperature: 140 °C
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 45

Components for primary circuit 46

005KV

Check valve FF, brass obturator, viton gasket

Max working temperature: 150 °C

Go to the product

B4

Components for primary circuit 47

Components for primary circuit 48

020KV

Check valve FF, brass obturator, viton gasket, high pressures

Max working temperature: 150 °C

Go to the product

B4

Components for primary circuit 49

Components for primary circuit 50

11D.160

Axial temperature gauge

Scale: 0–160 °C / 32–320 °F
Diameter: 51 mm
Stem total lenght: 50,5 mm
Stem diameter: 5 mm

Go to the product

B4

Components for primary circuit 51

Components for primary circuit 52

22AK

Grundfos UPM3 Solar 15-75 130

Max working temperature: 100 °C
Max head: 7,5 m w.g.
Centre distance: 130 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 53

Components for primary circuit 54

14D.3

PWM cable for UPM3 solar pump

Go to the product

B4

Components for primary circuit 55

Components for primary circuit 56

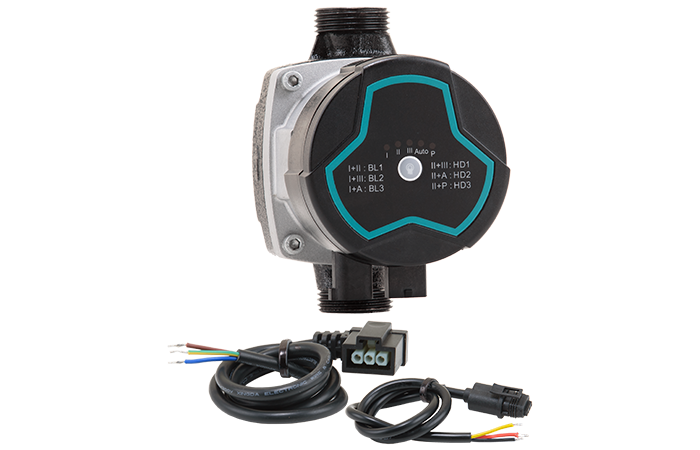

45AK

GPA 20-7,5 III 130

Max working temperature: 110 °C
Max head: 7,5 m w.g.
Centre distance: 130 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 57

Components for primary circuit 58

04AK.65

Grundfos UPS Solar 15-65 130

Max working temperature: 110 °C
Max head: 6,5 m w.g.
Centre distance: 130 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 59

Components for primary circuit 60

04AK.70

Grundfos UPS Solar 15-70 130

Max working temperature: 110 °C
Max head: 7 m w.g.
Centre distance: 130 mm
Max working pressure: 10 bar

Go to the product

B4

Components for primary circuit 61

Components for primary circuit 62

14D

Cable for UPS solar pump

Go to the product

B4

Components for primary circuit 63

Components for primary circuit 64

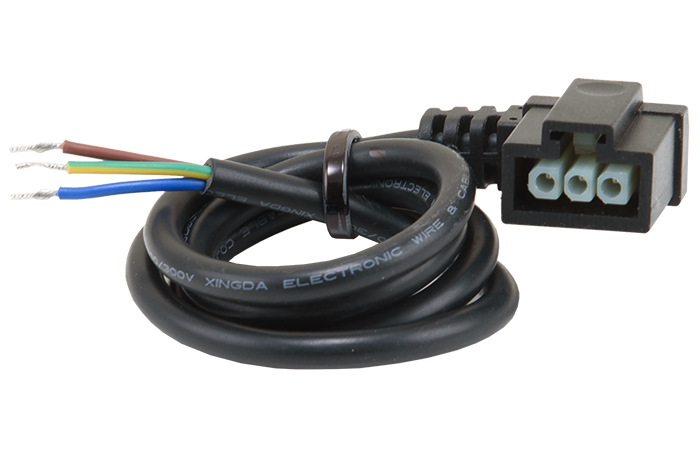

14D.17

Cable for GPA III pump

Go to the product

B4

Components for primary circuit 65

Components for primary circuit 66

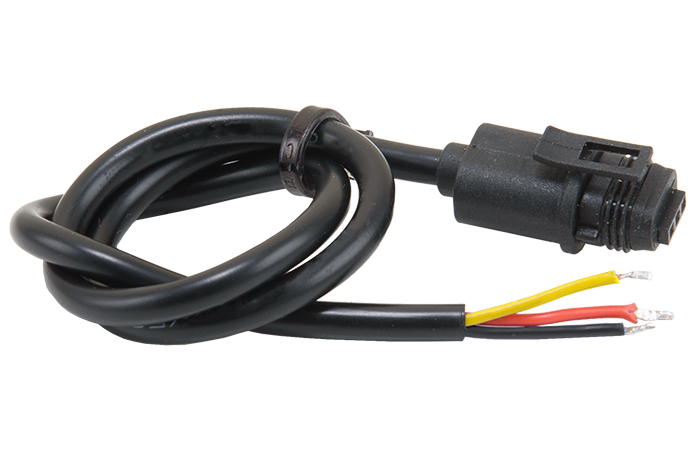

14D.16

PWM cable for GPA III pump

Go to the product
