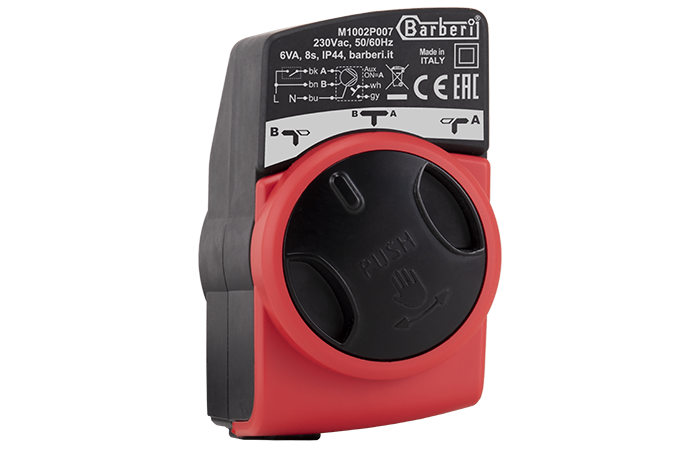

V83.W.2PM
3-way zone and diverting valve, 2 point actuator
- Max differential pressure: 1 bar
- Working temperature range: 0 (no frost)–90 °C
- Suitable fluids: water for thermal systems, glycol solutions (max 30%)
- Max working pressure: 10 bar
- Protection class: IP 44
- Frequency: 50–60 Hz
- Power consumption: 6 VA
- Aux. microswitch contact rating: 1 SPST, 6(1) A-230 V
