Accessories and spare parts for recessed regulating groups

Accessories and spare parts for recessed regulating groups 1

Accessories and spare parts for recessed regulating groups 2

M20.C

Thermo-electric actuator

Frequency: 50–60 Hz
Protection class: IP 54
Inrush current: max 550 mA
Power consumption: 1 W
Aux. microswitch contact rating: 5 (1) A
Ambient temperature: 0–60 °C

Go to the product

Accessories and spare parts for recessed regulating groups 3

Accessories and spare parts for recessed regulating groups 4

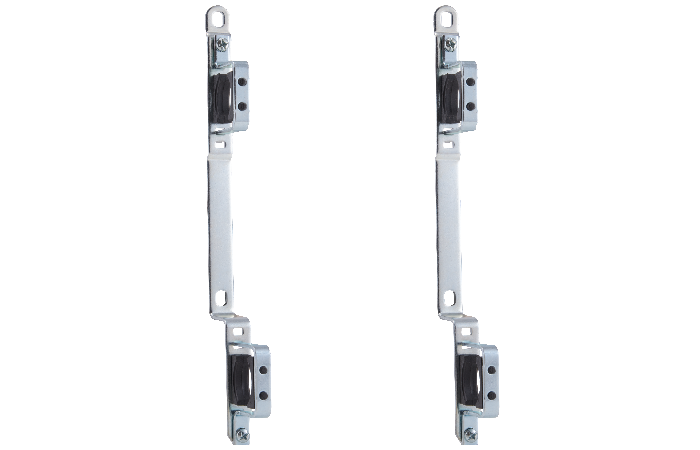

V38.14

Spare brackets for stainless steel manifolds

Material: zinc plated steel

Go to the product

Accessories and spare parts for recessed regulating groups 5

Accessories and spare parts for recessed regulating groups 6

630.1.2.N

Thermostatic mixing valve for heating systems

Max working temperature: 90 °C
Flow coefficient: Kv 3,5
Temperature adjustment range: 30–60 °C
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 7

Accessories and spare parts for recessed regulating groups 8

630.101.N

Thermostatic mixing valve for heating systems

Max working temperature: 90 °C
Flow coefficient: Kv 3,5
Temperature adjustment range: 25–50 °C
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 9

Accessories and spare parts for recessed regulating groups 10

05B

Manual air vent, PTFE seal

Max working temperature: 95 °C
Fully open length: 32 mm
Fully closed length: 29 mm
Max working pressure: 6 bar

Go to the product

Accessories and spare parts for recessed regulating groups 11

Accessories and spare parts for recessed regulating groups 12

P83

Adjustable manual air vent

Max working temperature: 95 °C
Max working pressure: 6 bar

Go to the product

Accessories and spare parts for recessed regulating groups 13

Accessories and spare parts for recessed regulating groups 14

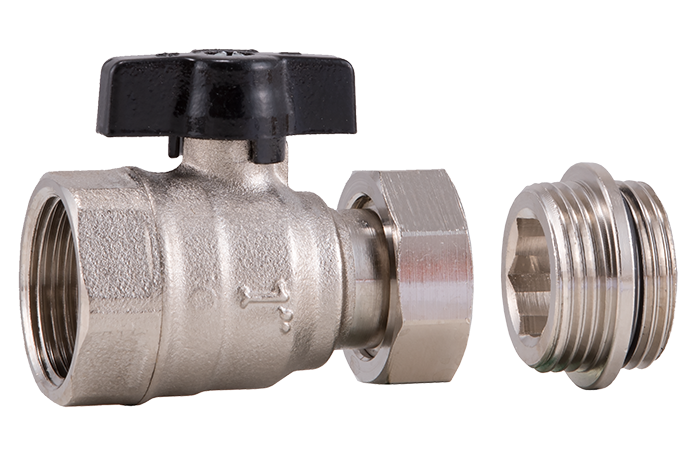

P90.1

Ball valve with nut and manifold fitting

Max working temperature: 95 °C
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 15

Accessories and spare parts for recessed regulating groups 16

P91.0

Pair of ball valves with red and blue handle

Working temperature range: -20–120 °C
Max working pressure: 30 bar

Go to the product

Accessories and spare parts for recessed regulating groups 17

Accessories and spare parts for recessed regulating groups 18

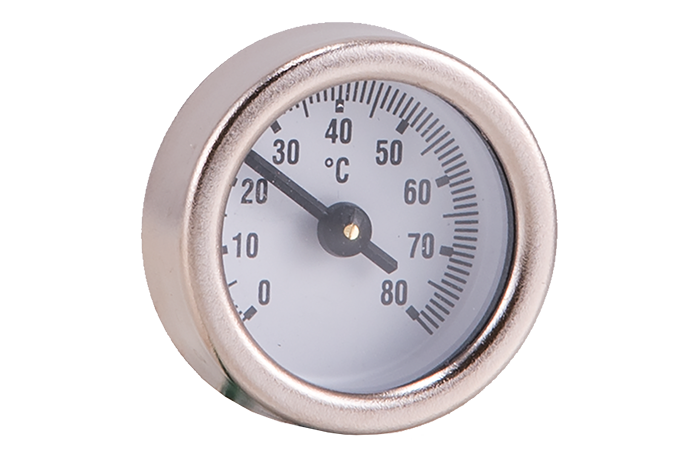

05BI

Axial temperature gauge

Scale: 0-80 °C
Diameter: 32 mm
Stem total lenght: 11 mm
Stem diameter: 5 mm
O-Ring: EPDM

Go to the product

Accessories and spare parts for recessed regulating groups 19

Accessories and spare parts for recessed regulating groups 20

16B.N

MM running fitting

Max working temperature: 95 °C
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 21

Accessories and spare parts for recessed regulating groups 22

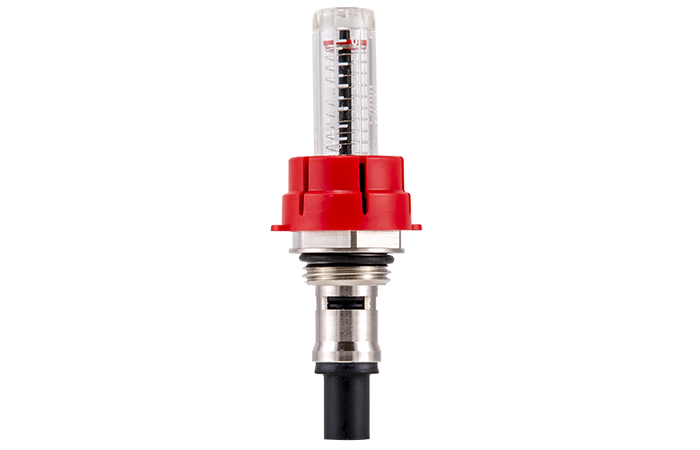

P30

Flow meter 0–5 l/min

Max working temperature: 70 °C
Max working pressure: 6 bar

Go to the product

Accessories and spare parts for recessed regulating groups 23

Accessories and spare parts for recessed regulating groups 24

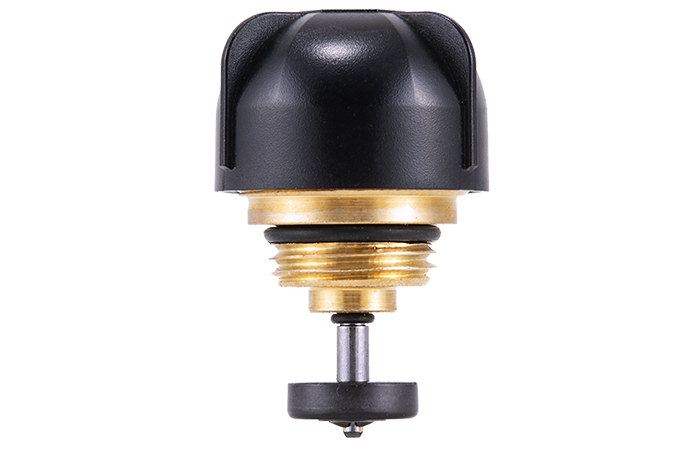

P29

Shut-off headwork

Max working temperature: 70 °C
Thermo-electric actuator: M30x1,5 mm
Max working pressure: 6 bar

Go to the product

Accessories and spare parts for recessed regulating groups 25

Accessories and spare parts for recessed regulating groups 26

617.1.N

Differential by-pass valve 2–6,5 m w.g.

Max working temperature: 90 °C
Connection distance: 55 mm
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 27

Accessories and spare parts for recessed regulating groups 28

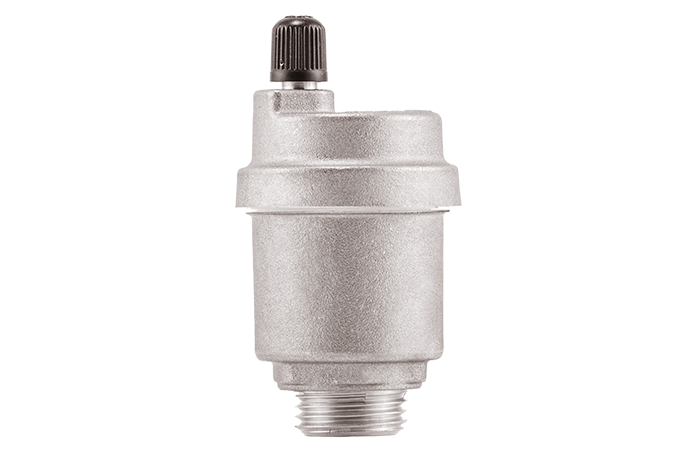

Y47.N

Compact automatic air vent

Max working temperature: 95 °C
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 29

Accessories and spare parts for recessed regulating groups 30

31AK

Grundfos UPM3 AUTO 25-70 130

Max working temperature: 100 °C
Max head: 7 m w.g.
Centre distance: 130 mm
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 31

Accessories and spare parts for recessed regulating groups 32

14D.2

Cable for UPM3 AUTO and Solar pump

Go to the product

Accessories and spare parts for recessed regulating groups 33

Accessories and spare parts for recessed regulating groups 34

29A.40

Wilo Para 25-130/7-50/SC-12

Max working temperature: 100 °C
Max head: 7,7 m w.g.
Centre distance: 130 mm
Max working pressure: 10 bar

Go to the product

Accessories and spare parts for recessed regulating groups 35

Accessories and spare parts for recessed regulating groups 36

14D.5

Cable for Wilo Para

Go to the product

Accessories and spare parts for recessed regulating groups 37

Accessories and spare parts for recessed regulating groups 38

01A.40

Grundfos UPSO 25-65 130

Max working temperature: 100 °C
Max head: 6,5 m w.g.
Centre distance: 130 mm
Max working pressure: 10 bar

Go to the product
