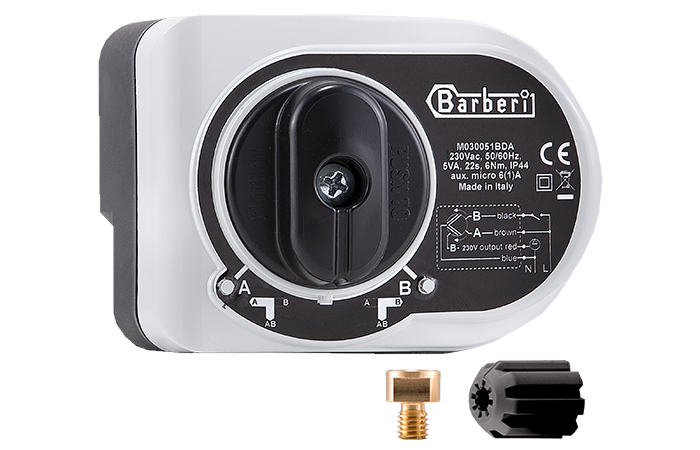

V55
2 point diverting valve, output contact in tension
- Max working temperature: 110 °C
- Rotation angle: 90°
- Leakage: <0,1%
- Suitable fluids: water for heating systems, glycol solutions (max 50%)
- Torque: 6 N·m
- Frequency: 50–60 Hz
- Protection class: IP 44
- Aux. microswitch contact rating: 6 (1) A
- Power consumption: 5 VA
- Max working pressure: 10 bar
