07G.DN20
07G.DN20 Distribution and regulating groups DN 20 1
07G.DN20

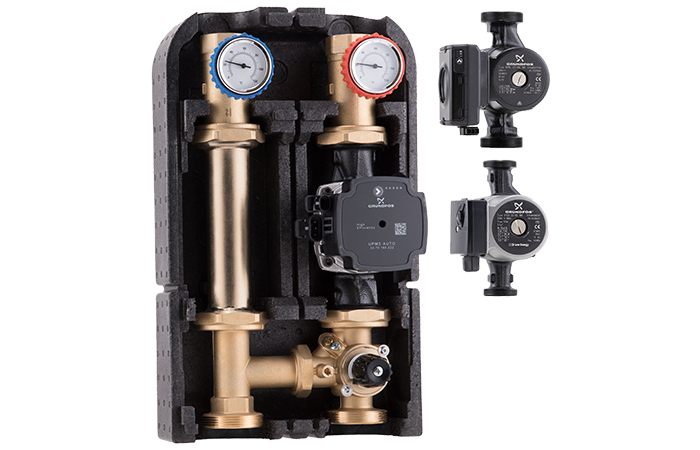

Motorizable group DN 20
  • Max working temperature: 90 °C
  • Max working pressure: 10 bar
  • Threaded connections: ISO 228-1

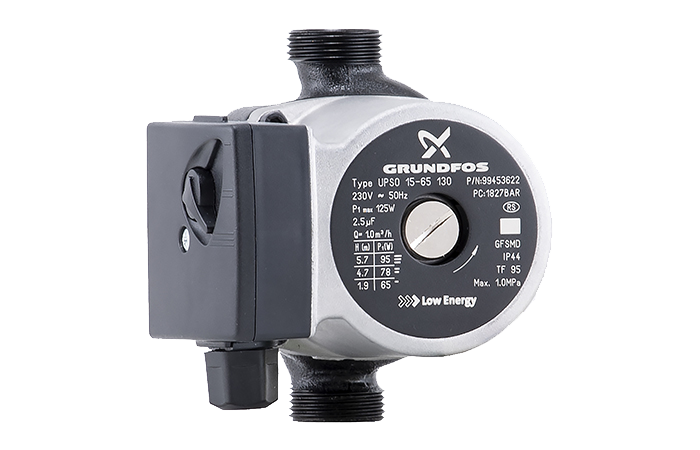

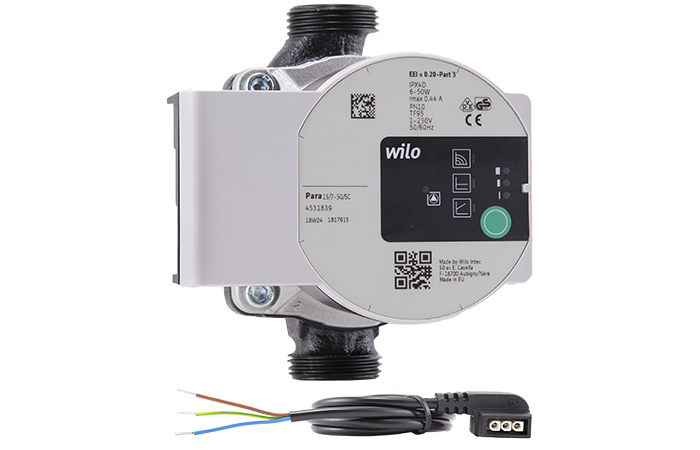

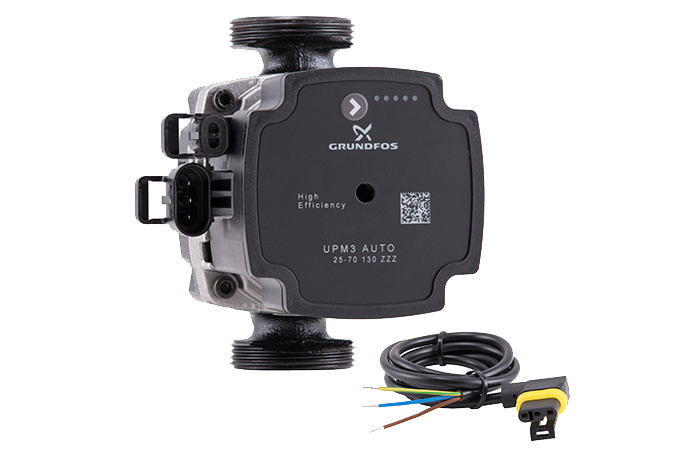

  • Pump: Grundfos UPM3 AUTO 25-70 130; Wilo Para 15/7-50/SC 130; Grundfos UPSO 15-65 130 (Extra EU)
  • Suitable fluids: water, glycol solutions (max 30%)

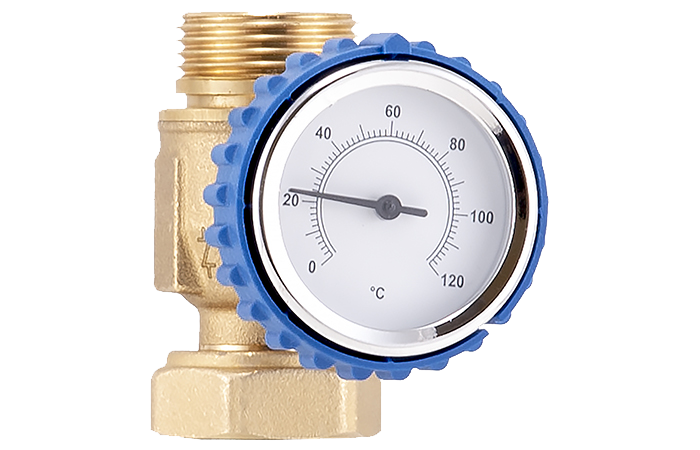

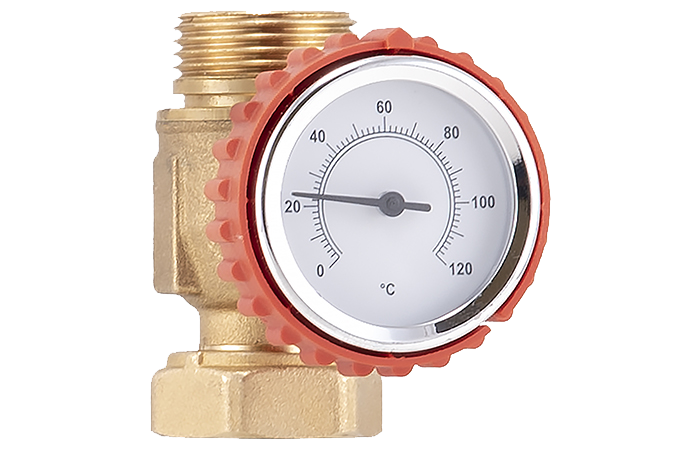

  • Temperature gauge scale: 0–120 °C
  • Product codes
  • Description
  • Documentation
  • Accessories
  • Alternative products
  • Spare parts
Product codes
Item code Size Kv Manufacturer Pump Download the 3D file
07G02000P G 1 M - (G 1 M+G 3/4 F) 4 1 Wilo Para 15-130/7-50/SC-9
07G02000L G 1 M - (G 1 M+G 3/4 F) 4 1 Grundfos UPM3 AUTO 15-70 130
07G02000F G 1 M - (G 1 M+G 3/4 F) 4 1 Grundfos (Extra EU) UPSO 15-65 130
07G02000X G 1 M - (G 1 M+G 3/4 F) 4 1 SenzaPompa WITHOUT PUMP
Description
Preassembled pump group for regulation and circulation of fluid at variable temperature. Allows the circulation of the thermal fluid, coming from the primary circuit, by adjusting its temperature by means of a motorized mixing valve. It is used in general heating and radiant panel systems with flow temperature regulation based on room and outside temperature (also called outside or weather or climate compensated control). The group is composed of a pump, flow/return shut-off valves, motorizable mixing valve, flow/return temperature gauges, anti-thermosiphon check valve, thermal insulation. In this group, the differential by-pass can be installed only externally. The group is reversible (flow line can be exchanged with the return line). Male and female thread on system side connections.
Documentation

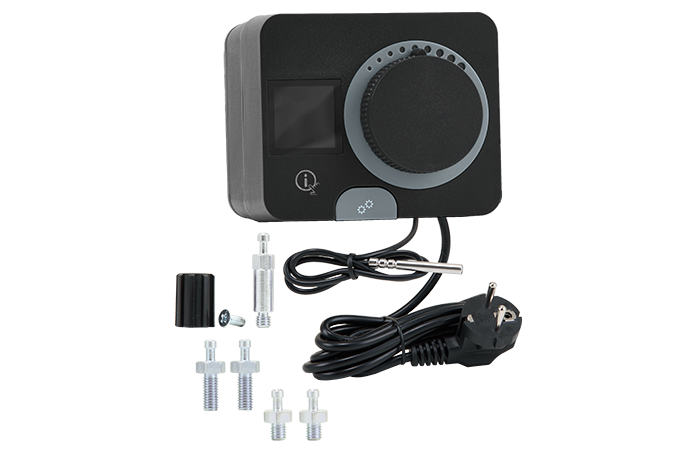

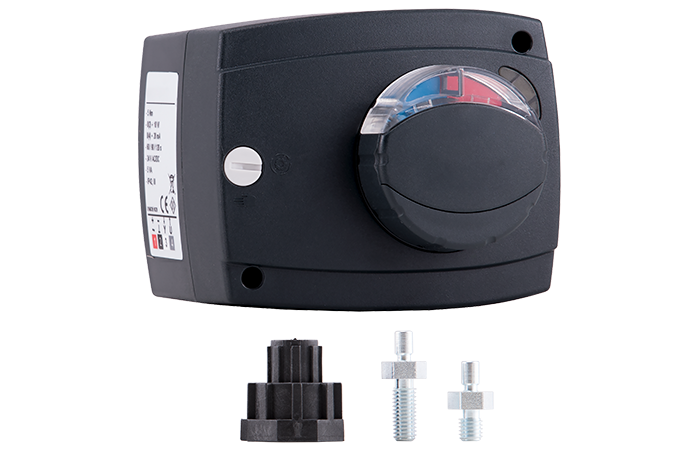

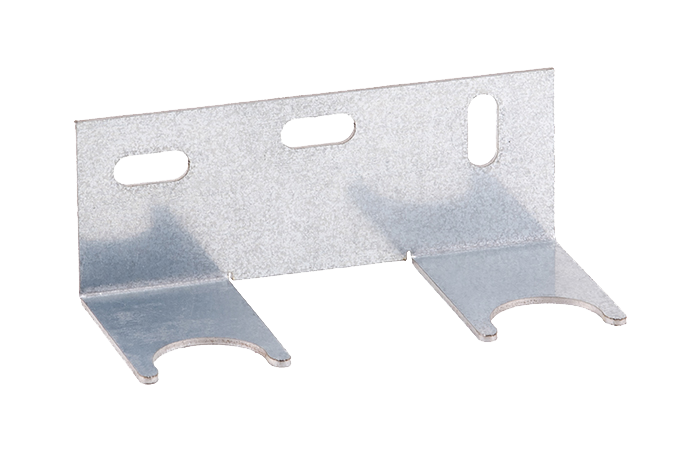

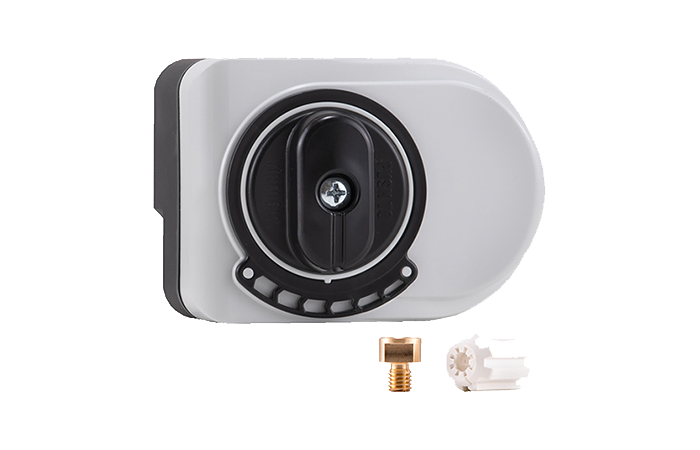

Accessories
Alternative products

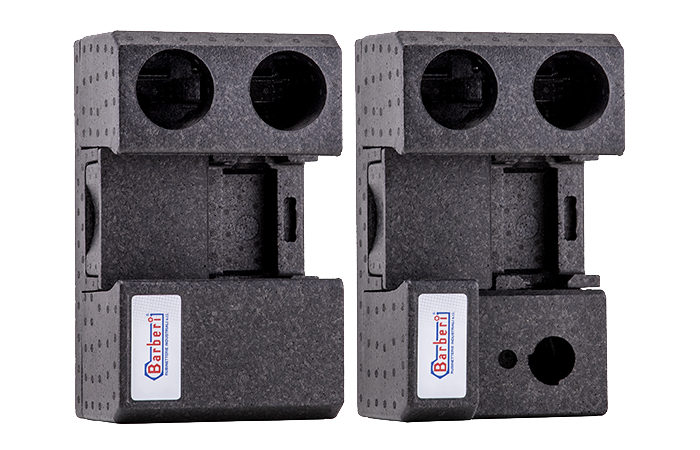

Spare parts
