01G.DN20
01G.DN20 Distribution and regulating groups DN 20 1
01G.DN20

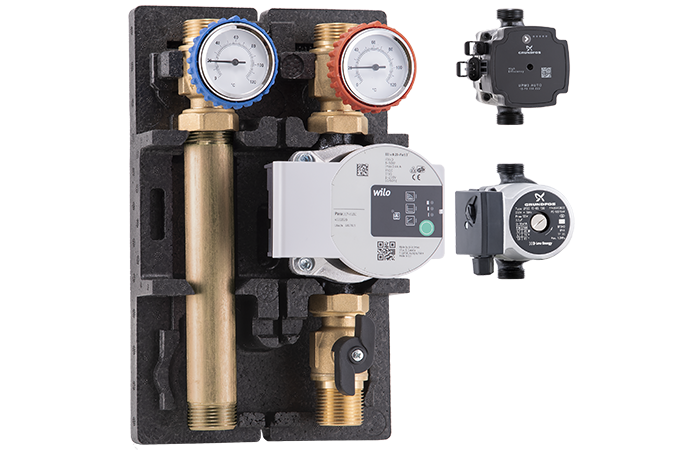

Direct group DN 20
  • Max working temperature: 90 °C
  • Max working pressure: 10 bar
  • Threaded connections: ISO 228-1
  • Pump: Grundfos UPM3 AUTO 25-70 130; Wilo Para 15/7-50/SC 130; Grundfos UPSO 15-65 130 (Extra EU)
  • Suitable fluids: water, glycol solutions (max 30%)
  • Temperature gauge scale: 0–120 °C
  • Product codes
  • Description
  • Documentation
  • Accessories
  • Alternative products
  • Spare parts
Product codes
Item code Size Manufacturer Pump Download the 3D file
01G02000P G 1 M - (G 1 M+G 3/4 F) 1 Wilo Para 15-130/7-50/SC-9
01G02000L G 1 M - (G 1 M+G 3/4 F) 1 Grundfos UPM3 AUTO 15-70 130
01G02000F G 1 M - (G 1 M+G 3/4 F) 1 Grundfos (Extra EU) UPSO 15-65 130
01G02000X G 1 M - (G 1 M+G 3/4 F) 1 SenzaPompa WITHOUT PUMP
Description
Preassembled pump group for direct distribution or circulation. Allows the circulation of the thermal fluid, coming from the primary circuit, without performing any thermal regulation. It is used when the same flow temperature of the primary circuit is requested by the user in heating and air-conditioning systems. The group is composed of a pump, flow/return shut-off valves, shut-off valve at the pump inlet, flow/return temperature gauges, anti-thermosiphon check valve, thermal insulation. In this group, the differential by-pass can be installed only externally. The group is reversible (flow line can be exchanged with the return line). Male and female thread on system side connections.
